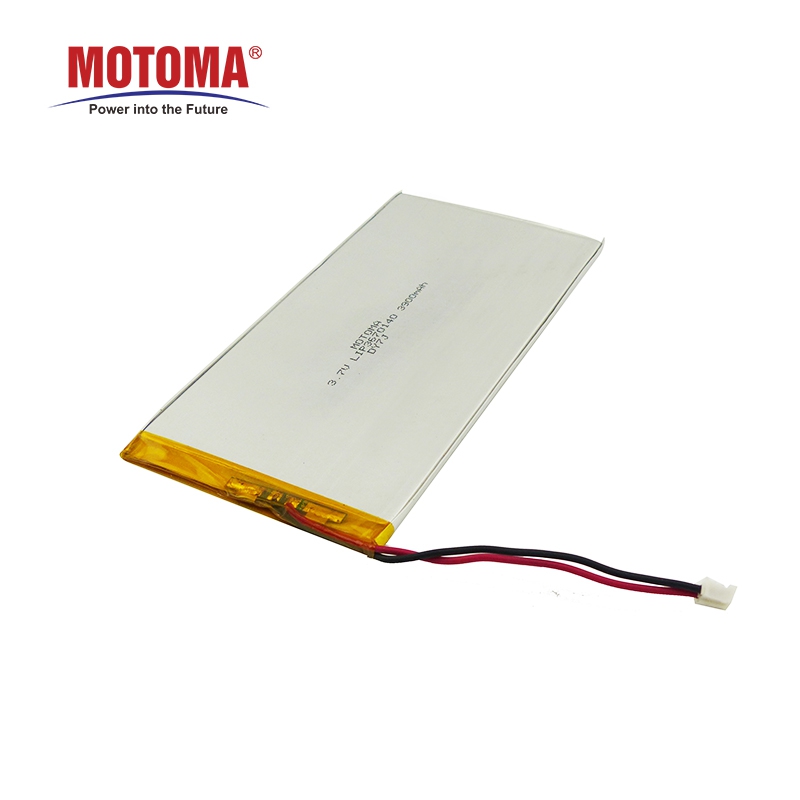

| Battery model | 3.7V 3670140 3900mAh (Customizable) |
| Nominal voltage | 3.7V |
| Nominal capacity | 3900mAh |
| Minimum capacity | 3900mAh |
| Charging voltage | 4.2V |
| Standard charging current | 780mA (0.2C) |
| End current | 39mA (0.01C) |
| Max. charging current | 1950mA (0.5C) |
| Standard discharging current | 780mA (0.2C) |
| Max. discharging current | 3900mA (1C) |
| End voltage of discharge | 3.0V |
| Dimension of cell | 3.6*70*140mm (Customizable) |
| Charging temperature range | 0~45℃ |
| Discharging temperature range | -20~60℃ |
| Connector | Molex, JST, Hirose etc (Customizable) |
| Protection Circuit Module (PCM) | Overcharge protect, over-discharge protect, over current protect, short-circuit protect |
| Cycle life | ≥80% capacity after 500 times standard cycles |
| Warantty life | 12 months |
UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.
