230V Inverter
    MOTOMA battery
  • motoma battery

10kW Hybrid Inverter Three 3 Phase IP66 for EU Standard CE IEC EN 50549-1 VDE 4105

  • IP66 protection for all-weather reliability
  • Smart LCD interface, easy setup & control
  • Supports generator charging
  • Dual input & output for flexible energy flow
  • WiFi + APP for real-time monitoring
  • Handles up to 150% unbalanced loads
  • Adjustable charging for battery protection
  • RS485 BMS ready for smart integration
  • Parallel up to 6 units for scalability
SKU: Elite 10KW Categories: , Tags: ,, , , , ,
Price: $🔒
📦Price varies by quantity. Buy Now or Login.
Description
Downloads
Video
Applications

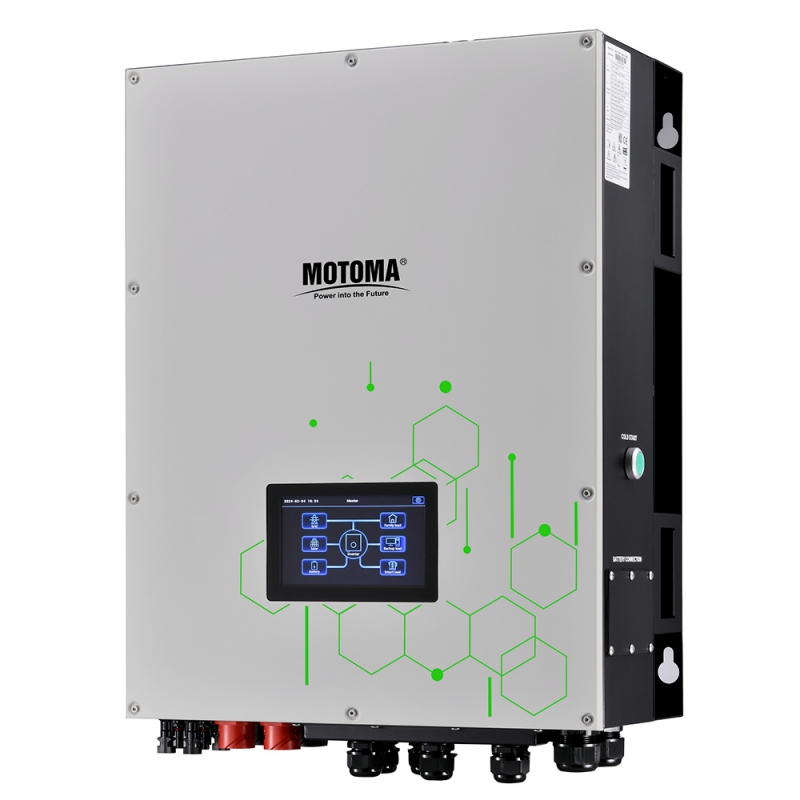

10kW Hybrid Inverter Three 3 Phase IP66 for EU Standard CE IEC EN 50549-1 VDE 4105


MOTOMA Three Phase Hybrid Inverter (Elite 10KW) features an IP66-rated enclosure for reliable operation in harsh environments, combined with an intuitive HMI LCD interface for easy configuration and monitoring. It supports energy storage from generators and offers dual input and dual output design for flexible energy management. Built-in WiFi with a mobile app enables real-time monitoring and remote control. The system handles up to 150% unbalanced loads, ensuring stable performance under demanding conditions. Charging current and voltage can be adjusted to match battery requirements and extend lifespan. It also includes an RS485 communication port for seamless BMS integration and supports parallel operation of up to 6 units, allowing scalable expansion for growing energy needs.

  • ① GRID-TIE OPERATION
    • Maximum PV Input Power15000W
    • Rated Output Power10000W
    • Maximum Charging Power10000W
  • ② PV INPUT (DC)
    • Nominal DC Voltage / Maximum DC Voltage720 DC / 900 VDC
    • Start-up Voltage / Initial Feeding Voltage150 VDC / 150 VDC
    • MPP Voltage Range150 VDC ~ 850 VDC
    • Full power MPP Voltage Range420 VDC ~ 850 VDC
    • Number of MPP Trackers / Maximum Input Current2 / A: 18A, B: 18A
  • ③ GRID OUTPUT (AC)
    • Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
    • Output Voltage Range184 - 265 VAC* per phase
    • Nominal Output Current14.5 A per phase
    • Power Factor Range0.9 lag ~ 0.9 lead
  • ④ EFFICIENCY
    • Maximum Conversion Efficiency (DC/AC)>96%
    • European Efficiency@ Vnominal>95%
  • ⑤ OFF-GRID OPERATION
    • AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC per phase / 180 VAC per phase
    • Acceptable Input Voltage Range170 - 290 VAC per phase
    • Maximum AC Input Current40 A
    • Maximum DC Voltage900 VDC
    • MPP Voltage Range150 VDC ~ 850 VDC
    • Full MPP Voltage Range420 VDC ~ 850 VDC
    • Number of MPP Trackers / Maximum Input Current2 / A: 18A, B: 18A
    • Nominal Output Voltage (Battery Mode)230 VAC (P-N) / 400 VAC (P-P)
    • Output WaveformPure sine wave
    • Efficiency (DC to AC)>93%
  • ⑥ HYBRID OPERATION
    • Nominal DC Voltage900 VDC
    • Start-up Voltage / Initial Feeding Voltage150 VDC / 150 VDC
    • MPP Voltage Range150 VDC ~ 850 VDC
    • Full MPP Voltage Range420 VDC ~ 850 VDC
    • Number of MPP Trackers / Maximum Input Current2 / A: 18A, B: 15A
    • Nominal Output Voltage (Grid Output)230 VAC (P-N) / 400 VAC (P-P)
    • Output Voltage Range184 - 265 VAC* per phase
    • Nominal Output Current14.5 A per phase
    • AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC per phase / 180 VAC per phase
    • Acceptable Input Voltage Range170-290 VAC per phase
    • Maximum AC Input Current40 A
    • Nominal Output Voltage (Battery Mode)230 VAC (P-N) / 400 VAC (P-P)
    • Efficiency (DC to AC)>93%
  • ⑦ BATTERY & CHARGER
    • Battery Voltage Range40~60 VDC
    • Maximum Discharging Current220 A
    • Maximum Charging Current220 A
  • ⑧ PHYSICAL
    • Dimension, D x W x H (mm)247×500×650
    • Net Weight (kgs)50
  • ⑨ INTERFACE
    • Communication PortRS-232, RS-485, USB, CAN and Wi-Fi
    • Intelligent SlotOptional for SNMP and Modbus cards
  • ⑩ ENVIRONMENT
    • Humidity0 ~ 100% RH (Non-condensing)
    • Operating Temperature-25 to 60°C, > 45°C power derating
    • Altitude0 ~ 1000 m**
  • ⑪ PROTECTION & CERTIFICATE
    • SafetyIEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019, IEC61000-3-11:2019. EN 61000-3-12:2011
    • Grid Connection StandardEN 50549-1. VDE-AR-N4105
