Lithium Battery NTC Protection: How Temperature Monitoring Works in a Battery Pack

Lithium battery protection is often discussed in terms of overcharge, over-discharge and overcurrent. Temperature deserves the same attention. A lithium-ion cell can behave very differently when it is charged in a cold environment, operated under a heavy load or exposed to excessive heat. That is why many battery packs include an NTC thermistor as part of the temperature monitoring system.

In simple terms, Lithium Battery NTC Protection gives the charger or battery management system a way to estimate battery temperature. The NTC does not normally disconnect the battery on its own. Instead, its resistance changes with temperature, and the electronics use that information to decide whether charging should continue normally, be reduced or be stopped.

This distinction matters. A good thermal protection design is not simply “add a thermistor.” The thermistor curve, sensor location, charger thresholds, BMS logic and the battery cell manufacturer‘s permitted charging conditions all have to work together.

What Does NTC Mean in a Lithium Battery?

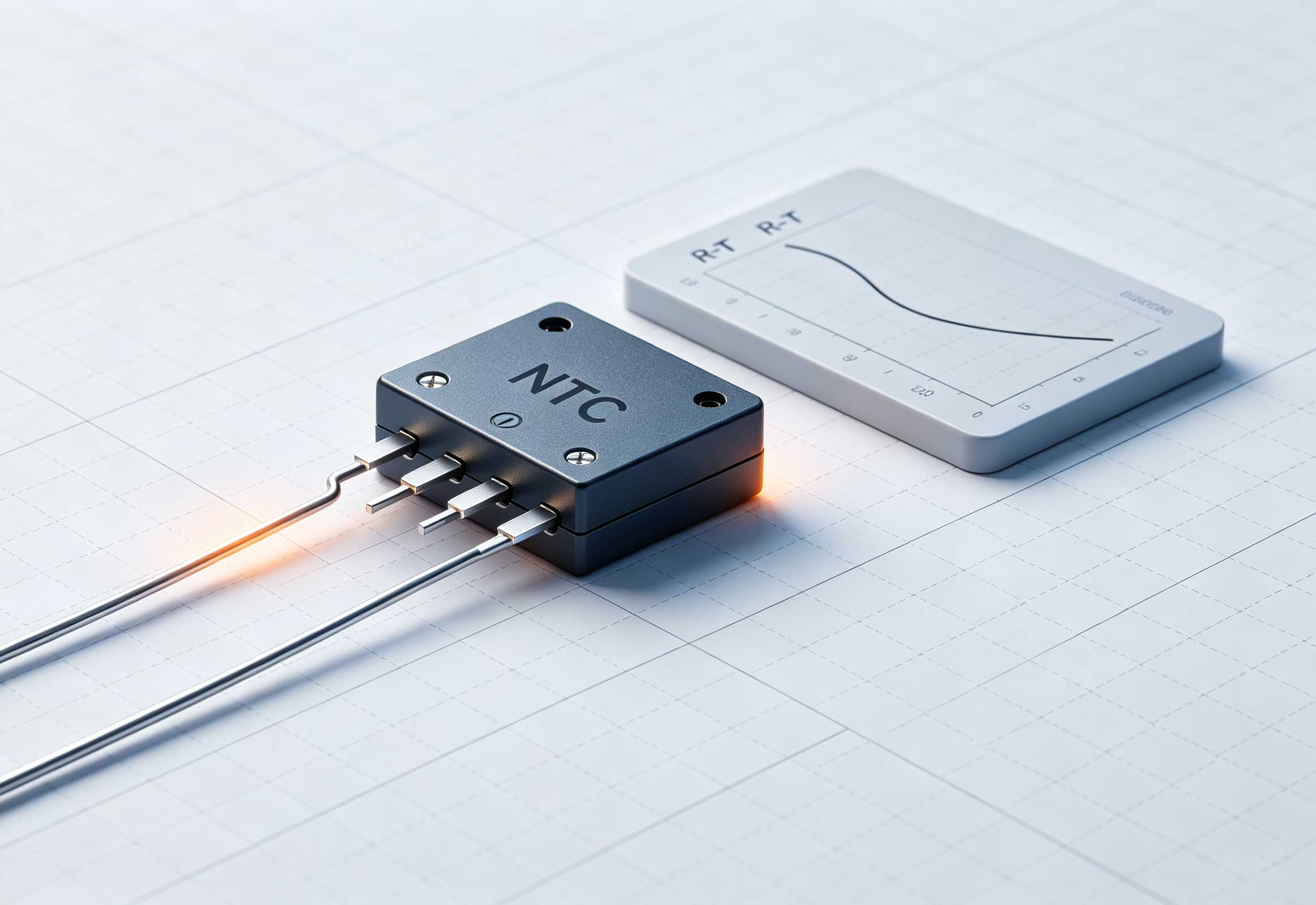

NTC stands for Negative Temperature Coefficient. An NTC thermistor is a temperature-sensitive resistor whose resistance decreases as its temperature rises.

If the battery becomes warmer, NTC resistance falls. If the battery becomes colder, resistance rises. By measuring that resistance—or more commonly the voltage created by the thermistor in a resistor network—a charger or BMS can estimate battery temperature.

How Lithium Battery NTC Protection Works

Most NTC sensing circuits are conceptually simple. The thermistor is connected to a charger temperature-sense input or to an ADC through a resistor network. As NTC resistance changes, the voltage at the sensing point also changes.

The system then compares the measured value with programmed or hardware-defined temperature thresholds.

1. The lithium cell warms or cools.
2. The NTC thermistor follows the cell temperature.
3. The thermistor resistance changes.
4. The charger or BMS reads the resulting electrical signal.
5. The control circuit compares the reading with its permitted temperature zones.
6. Charging may continue normally, operate under modified conditions or stop.

Many dedicated lithium-ion charger ICs include a temperature-sense or TS pin specifically for this purpose. Some implement simple HOT/COLD limits, while others support several temperature zones that allow different charging current or charging voltage settings.

Why Temperature Matters During Lithium-Ion Charging

Temperature affects electrochemical reaction rates, internal resistance and the way lithium ions move inside a cell. Charging therefore cannot be treated as independent of temperature.

Cold charging is particularly important to control. At sufficiently low temperatures, lithium-ion transport and insertion into the anode become more difficult. Depending on the cell chemistry, charging current and state of charge, inappropriate cold charging can increase the risk of lithium plating.

At elevated temperatures, charging conditions can also require adjustment. High temperature accelerates unwanted chemical reactions and can reduce battery life. At sufficiently high cell temperature, charging should not continue.

Typical Temperature-Control Strategy

A battery charging system may divide temperature into several operating zones. The exact temperatures vary, but the control philosophy often looks like this:

JEITA guidance, for example, describes temperature regions in which charging voltage and/or current may need to change. A commonly cited standard-temperature example is approximately 10°C to 45°C for maximum charging conditions, but this is not a universal specification for every cell or product.

Understanding R25 and the NTC Beta Value

Two specifications appear repeatedly when engineers select a battery NTC: R25 and the Beta value.

R25

R25 is the thermistor resistance at 25°C. A 10 kΩ NTC, for example, is nominally 10 kΩ at 25°C.

10 kΩ thermistors are common in battery temperature sensing, but “10K” does not completely define the sensor.

Beta Value

The Beta value describes the approximate slope of the thermistor‘s resistance-temperature characteristic over a specified temperature interval.

R(T) = R25 × exp [ B × (1/T − 1/298.15) ]

Where:

• R(T) = thermistor resistance at temperature T
• R25 = resistance at 25°C
• B = thermistor Beta constant
• T = absolute temperature in kelvin

The important practical lesson is that two 10K NTC thermistors can have different resistance values at the same temperature if their Beta values or resistance curves are different.

That difference can shift the temperature at which a charger believes the battery has reached a HOT or COLD threshold.

For this reason, production designs should normally be verified with the thermistor manufacturer‘s published R/T table or coefficients. A simple Beta equation is useful for estimation, but more accurate models may be required when tight temperature accuracy is important.

10K NTC Does Not Automatically Mean Compatible

A common purchasing mistake is to specify only:

“Battery pack with 10K NTC.”

That is incomplete.

A more useful specification is something closer to:

10 kΩ at 25°C, specified Beta value, defined R25 and B tolerances, required operating range, specified sensor construction and confirmed compatibility with the charger/BMS temperature-sense circuit.

Where Should the NTC Sensor Be Located?

NTC selection is only half of the problem. Thermal placement can be just as important as electrical accuracy.

Imagine a perfectly calibrated temperature sensor hanging several millimeters away from the cell in moving air. Electrically it may be accurate, but it may not represent the actual cell temperature during high-current charging or discharging.

In many battery packs, the NTC is thermally coupled to a cell surface. Depending on the design, it may be fixed using suitable adhesive, tape, insulation or a dedicated sensor fixture.

The ideal location depends on:

• cell format and dimensions;
• series and parallel configuration;
• charging and discharging current;
• location of busbars and current-carrying connections;
• nearby MOSFETs or other heat-generating electronics;
• enclosure airflow;
• thermal interface materials;
• expected external heat sources.

For a small single-cell pack, one thermistor may be sufficient when properly positioned. Larger multi-cell packs may require multiple sensors because a single measurement cannot always represent the hottest or coldest cell in the system.

NTC Temperature vs. Charger Temperature

One point is easily overlooked: battery temperature and charger IC temperature are not the same measurement.

Many charger ICs have their own internal thermal regulation or thermal shutdown function. That protects the charger silicon from excessive junction temperature.

An external battery NTC, on the other hand, is intended to provide information about the battery pack or cell temperature.

A design should not automatically assume that one sensor can replace the others.

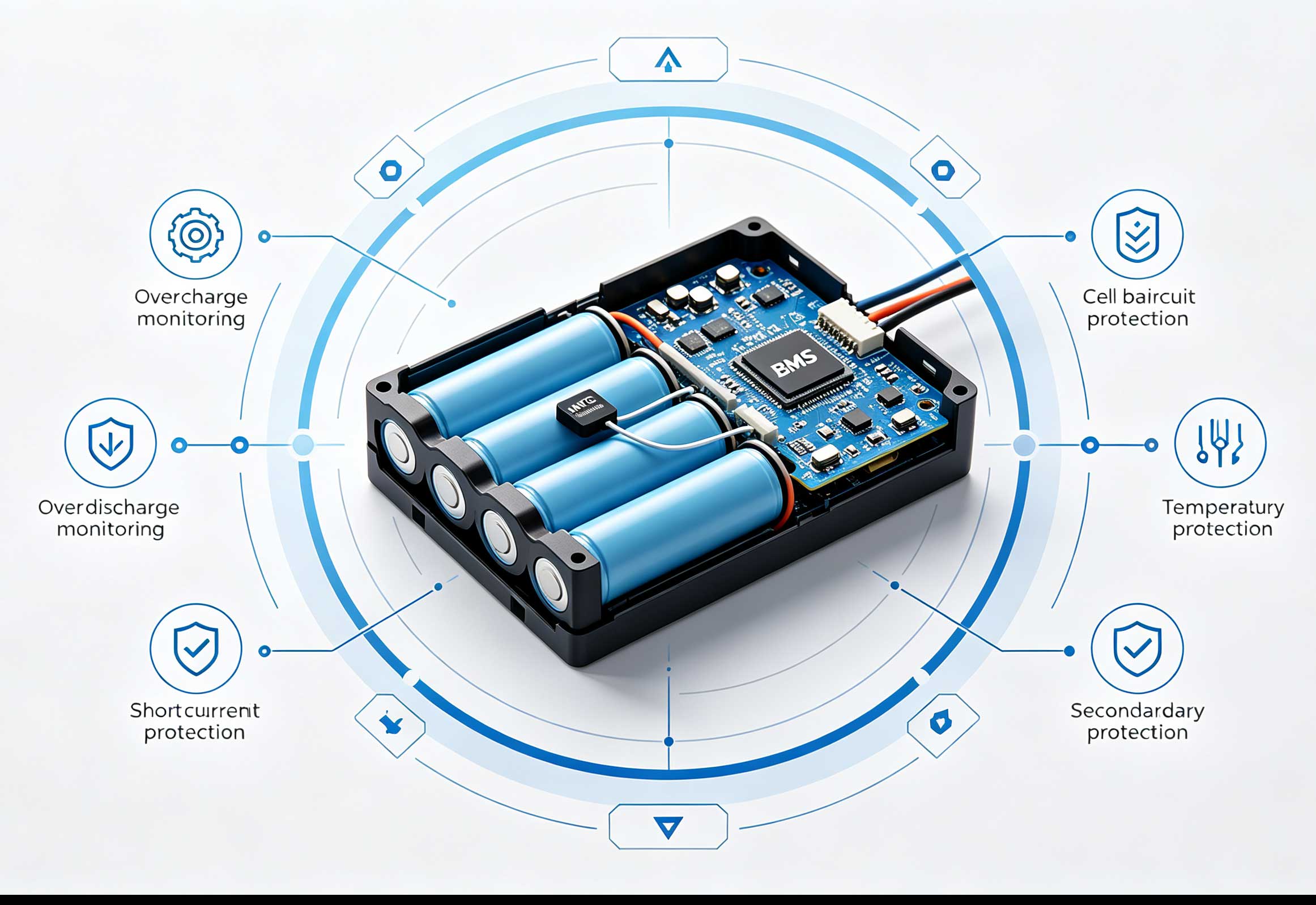

NTC Protection Is Only One Layer of Battery Protection

Temperature monitoring is important, but a safe lithium battery system normally relies on several protection functions working together.

Depending on the application, these may include:

• overcharge protection;
• over-discharge protection;
• overcurrent protection;
• short-circuit protection;
• temperature monitoring;
• charger input protection;
• cell balancing in multi-series battery packs;
• secondary protection or fuse elements where required;
• system-level software monitoring.

The correct architecture depends strongly on cell count, chemistry, product power level and applicable product requirements.

Common NTC Design Mistakes

1. Selecting by Resistance Only

Choosing a “10K NTC” without confirming its Beta value and full resistance-temperature curve can produce incorrect temperature thresholds.

2. Poor Thermal Contact

A sensor that is electrically correct but poorly coupled to the cell may react too slowly or measure the wrong temperature.

3. Measuring the Wrong Heat Source

An NTC located next to a hot MOSFET may report electronics temperature rather than representative cell temperature.

4. Ignoring Tolerance Stack-Up

Thermistor resistance tolerance, Beta tolerance, pull-up resistor tolerance, ADC accuracy and charger threshold accuracy can all influence the final detection point.

5. Ignoring Open- and Short-Circuit Conditions

A broken sensor wire, connector problem or shorted NTC can create an abnormal reading. The system should have a defined response to plausible sensor faults.

6. Copying Temperature Limits From Another Battery

A charging profile that is suitable for one lithium-ion cell is not automatically suitable for another. Cell chemistry, electrode design, capacity and manufacturer limits matter.

7. Treating NTC as the Complete Safety System

The thermistor provides information. The rest of the system must respond correctly to that information.

Should a Battery Have One NTC or Several?

There is no fixed answer.

Small consumer battery packs often have a relatively uniform thermal environment, so a single well-positioned sensor may provide useful temperature information.

As packs become larger, the situation changes. A module can develop temperature gradients between cells, especially under high load or when cooling is uneven.

Additional NTC sensors may then be used to monitor different cells or thermal zones.

A useful engineering question is not simply:

“How many thermistors do we need?”

It is:

“Can the selected sensor locations detect the important thermal conditions that the control system needs to manage?”

How to Specify NTC Requirements for a Custom Lithium Battery

When discussing a custom lithium battery with a battery manufacturer, providing more information at the beginning can prevent repeated revisions later.

A Practical NTC Design Review Checklist

Before releasing a battery design, an engineering review should be able to answer the following questions:

• What exact NTC model or resistance curve is being used?
• What is the R25 tolerance?
• What is the Beta value and its tolerance?
• Does the charger/BMS expect the same NTC curve?
• What resistance corresponds to each temperature threshold?
• Have resistor and ADC/IC tolerances been included?
• Where is the NTC physically installed?
• Does it track real cell temperature under charge and discharge?
• What happens if the NTC wire becomes open?
• What happens if the NTC becomes shorted?
• Are cold and hot charging limits based on the selected cell specification?
• Has the complete battery assembly been thermally tested rather than only the circuit on a bench?

That checklist is far more useful than simply confirming that a thermistor appears on the schematic.

Frequently Asked Questions About Lithium Battery NTC Protection

Final Thoughts

Lithium Battery NTC Protection is simple in principle but surprisingly easy to specify incorrectly.

A thermistor may cost very little compared with the rest of a battery pack, yet its resistance curve and physical location can influence how the charging system interprets battery temperature.

The best design approach is therefore to treat the NTC, battery cell, charger and BMS as one thermal-control system rather than as unrelated components.

Start with the selected cell‘s permitted charging conditions. Then confirm the thermistor R/T curve, sensing circuit, threshold tolerances and sensor location. Finally, validate the complete assembled battery under realistic environmental and electrical conditions.

That process produces a much more meaningful result than choosing a generic “10K NTC” and assuming the job is finished.
