High voltage battery 614V LiFePO4 solar systems with 3P inverter 50kW for industrial food plant

In an era where industries are under increasing pressure to reduce carbon footprints and achieve energy independence, MOTOMA’s DSE-LFP 614.4V 200A high-voltage LiFePO₄ battery system is setting a new standard for clean, reliable, and intelligent power storage—specifically engineered for industrial-grade solar energy applications.

A Clean Energy System Built for Industrial Demands

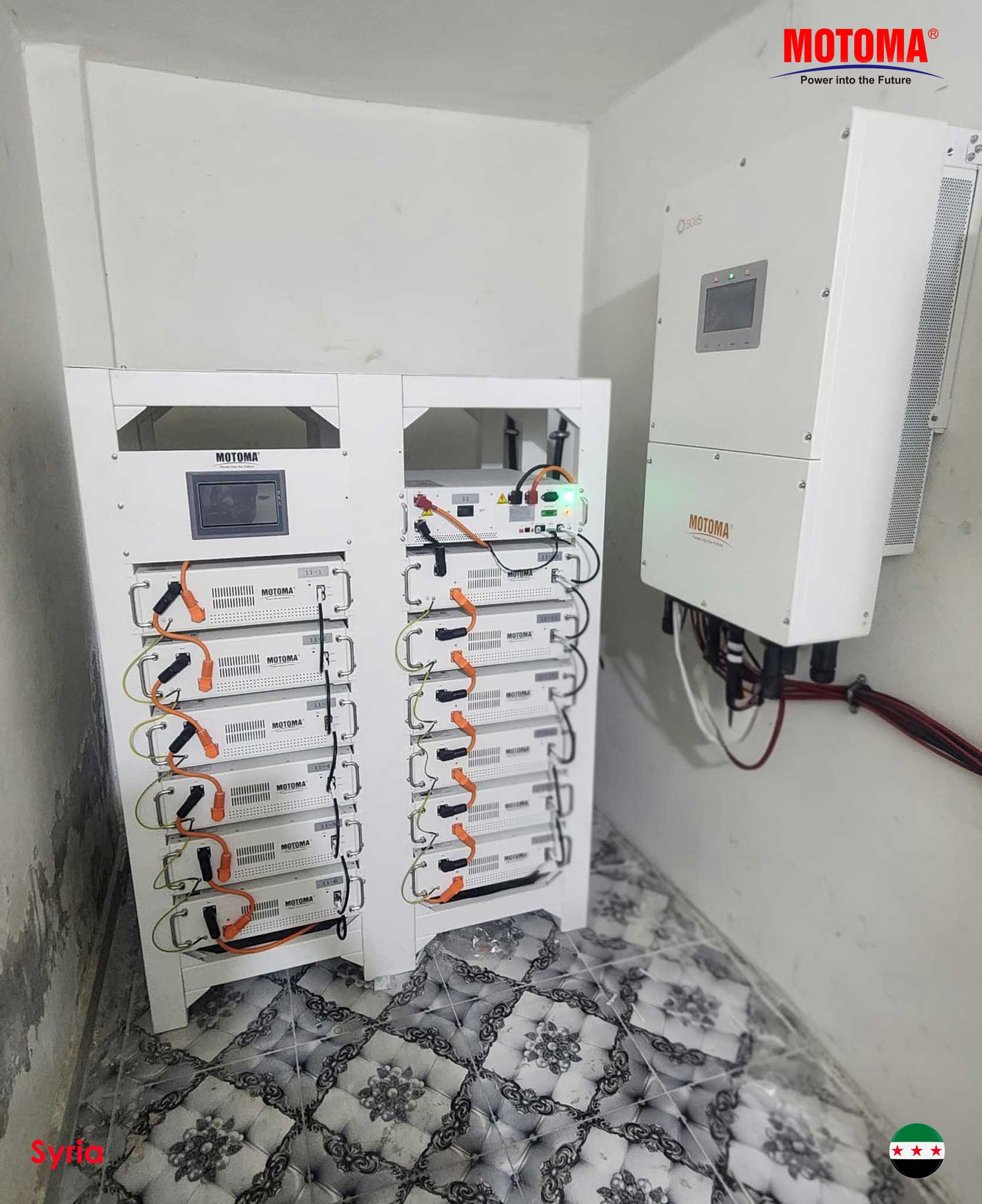

Recently deployed at a food packaging and processing facility in Syria, this solar + storage solution is an example of how energy infrastructure can be transformed to deliver continuous productivity, lower operational costs, and true energy resilience.

System Overview:

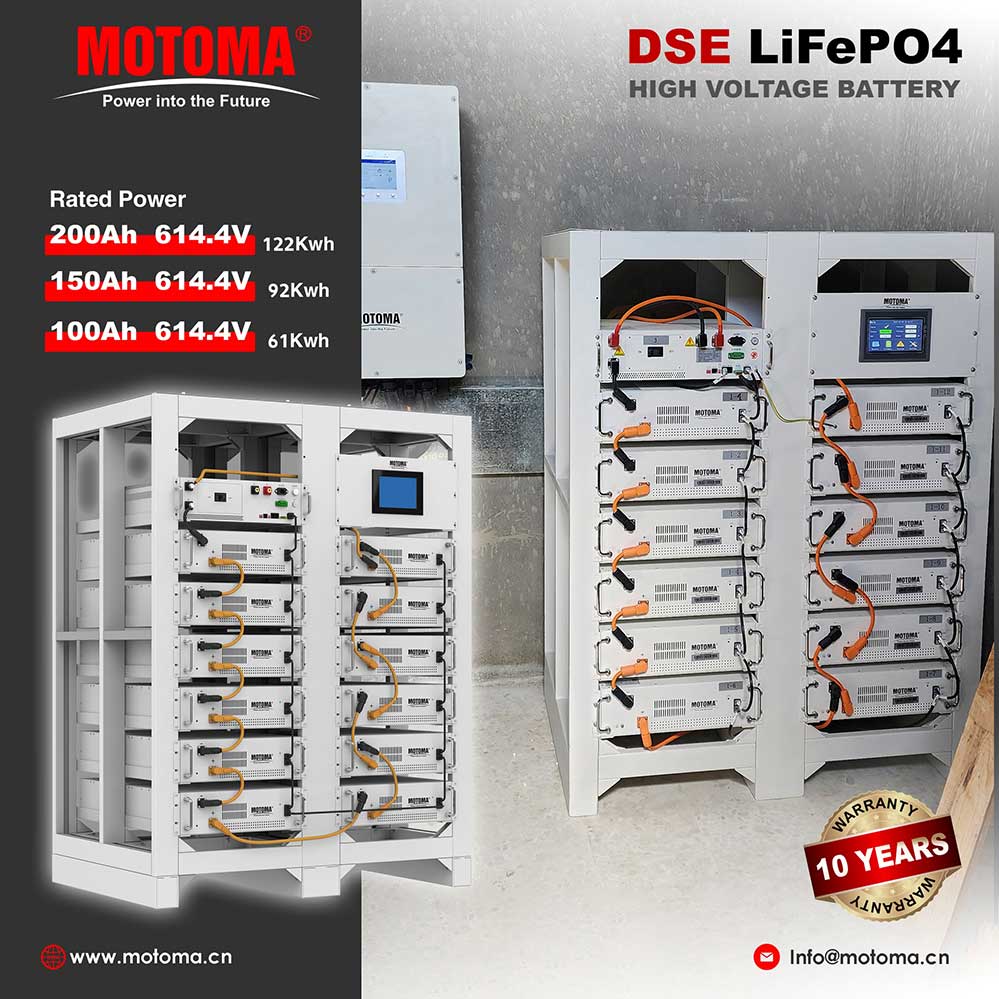

• Battery Type: DSE-LFP 614.4V 200A LiFePO₄
• Nominal Voltage: 614.4V
• Capacity: 200Ah / 122.88kWh
• Cycle Life: ≥6000 cycles @ 80% DoD
• BMS: Built-in intelligent protection system (CAN/RS232)
• Certifications: ISO, UL, CE, UN38.3, MSDS

Combined with:

• 112 × 620W N-Type TOPCon Solar Panels
• 50kW MOTOMA Solis 3-phase hybrid inverter
• DC/AC protection panel + LCD control module

This configuration delivers robust, stable power designed for 24/7 operations—ideal for food manufacturing lines where energy downtime is not an option.

Why High-Voltage Storage Matters in Industrial Applications

High-voltage batteries (typically above 500V) are preferred for industrial systems because:

• Reduced energy losses during transmission over internal busbars
• Smaller cable cross-sections, lowering overall installation cost
• Better inverter efficiency, especially for 3-phase systems
• Faster charge/discharge rates, essential for heavy load machinery

MOTOMA’s battery supports a working voltage range from 537.6V to 691.2V, optimized for high-voltage inverter compatibility, and supports multiple pack parallel connections to expand capacity without system redesign.

Installation & Engineering: What Makes It Professional?

The success of this project hinges not only on product quality, but also on proper system integration. Here’s a brief breakdown of the installation strategy:

1. Site Survey & Load Assessment: Engineers assessed the plant‘s average daily consumption, peak loads, and power quality requirements to size the system properly.
2. Structural Design: The battery rack was placed in a well-ventilated utility room with reinforced flooring and IP-rated protection for both DC and AC panels.
3. Wiring & Connection: Orange HV cables were carefully routed to minimize loop inductance and maintain safety clearances. Pre-configured connectors simplified inter-module wiring.
4. System Integration: Communication interfaces (CAN/RS485) enabled real-time data exchange between battery, inverter, and EMS, ensuring safe and coordinated charging/discharging behavior.
5. Commissioning & Testing: After installation, thermal imaging, insulation resistance, BMS calibration, and inverter synchronization were completed by certified solar technicians.

Operational Advantages – What the Data Shows

A typical food processing plant can consume 300–500kWh daily. With this MOTOMA system:

• Solar power: ~69.4kW peak (112 panels × 620W)
• Battery: 122.88kWh storage allows up to 12 hours of backup for off-peak periods
• ROI: is projected within 4–5 years, considering rising grid electricity prices and reduced diesel generator reliance

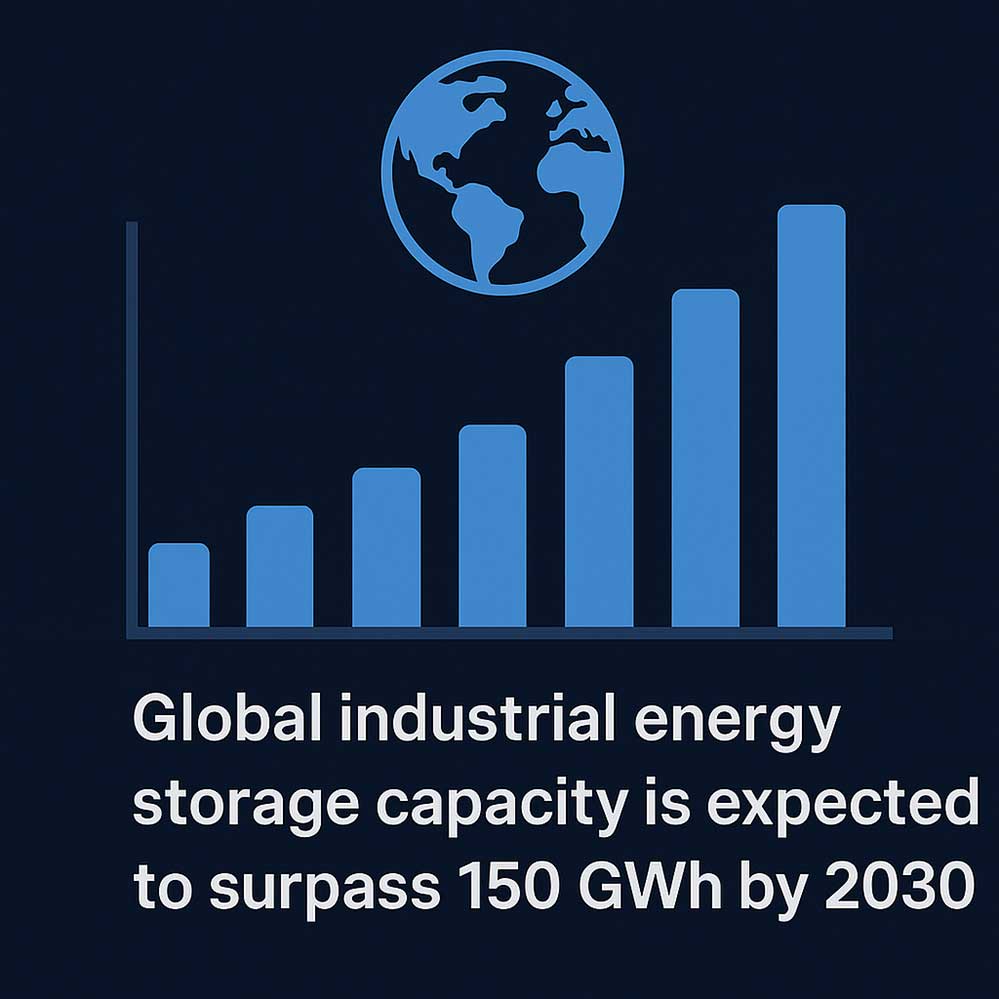

*Global industrial energy storage capacity is expected to surpass 150GWh by 2030 (Source: BloombergNEF)*

Toward a Sustainable Industrial Future

This is more than just a power solution—it’s a transformation. By deploying high-efficiency, long-life battery storage systems powered by solar, industries in emerging markets are securing their operations against volatility, blackouts, and rising energy costs.

With over 6000 life cycles, minimal maintenance requirements, and flexible capacity expansion, MOTOMA‘s DSE LiFePO₄ systemdelivers not just electricity, but resilience, safety, and long-term value.

Want to upgrade your plant to solar + storage?

Let MOTOMA’s engineering team design a custom high-voltage system for your facility. From concept to commissioning, we deliver turnkey energy solutions that power a cleaner industrial future.
