Industrial Solar Storage Systems Project with 3-Phase Inverters and LiFePO4 Batteries Installation

As energy costs continue to rise and reliability becomes critical for operations, industries and businesses around the world are increasingly turning to solar energy and smart storage systems. This real-world installation showcases how cutting-edge hybrid technology delivers performance, scalability, and cost savings for commercial and industrial facilities.

Project Overview

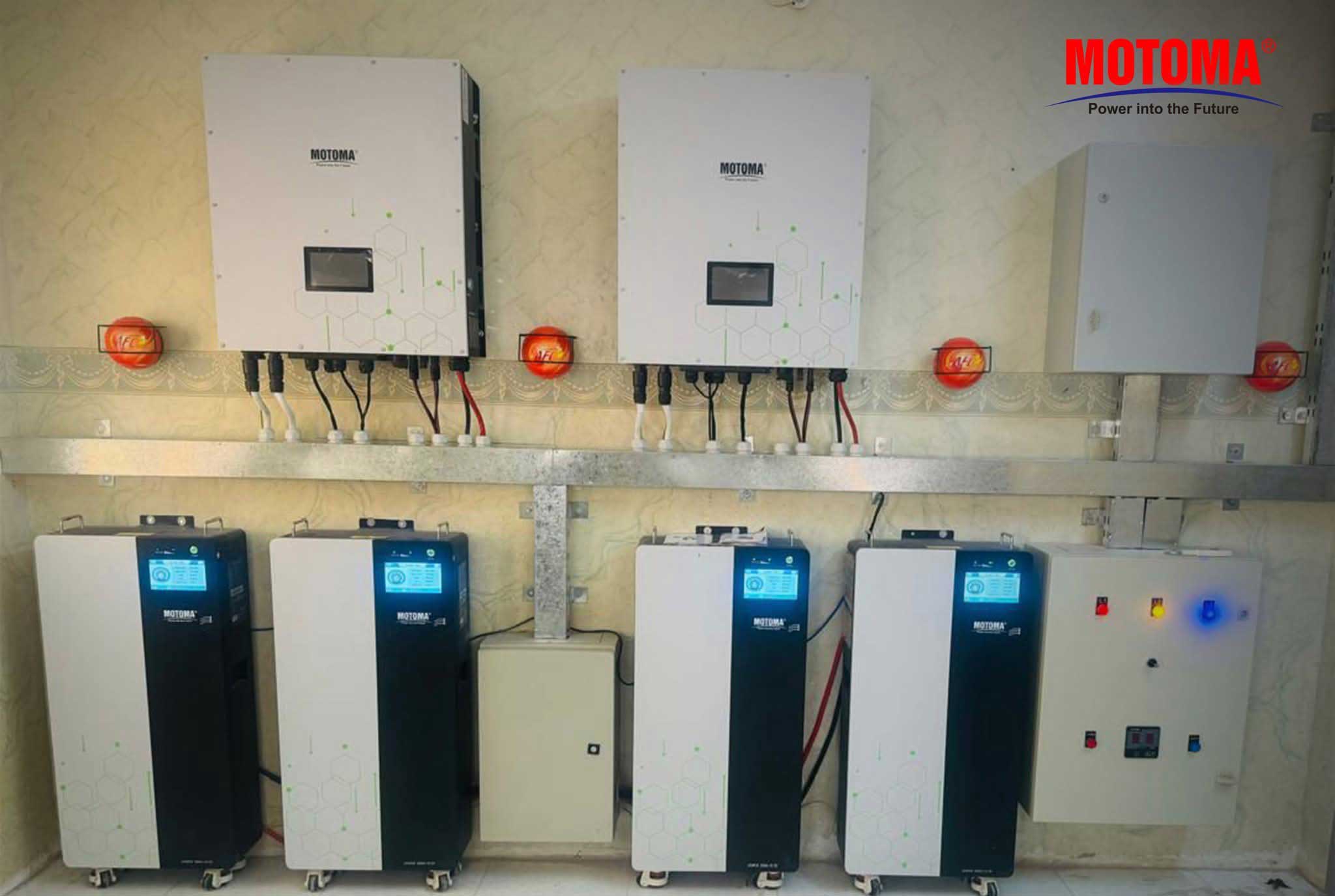

This system is powered by two three-phase 15kW hybrid inverters and four M90 PRO lithium batteries, each with 16.384kWh capacity. Together, they form a robust, modular solution for medium- to large-scale applications, including factories, warehouses, data centers, and retail complexes.

Key Features of the three-phase Inverter System

• Rated Power: 3P 15KW 48V
• IP65 Protection: Waterproof and dustproof for tough environments.
• Flexible Power Flow: Supports grid-tie, off-grid, and hybrid backup modes.
• Built-in WiFi Monitoring: Mobile app control ensures real-time oversight and data access.
• Customizable Charging: Adjustable current/voltage and programmable operation cycles.
• Parallel Operation: Supports expansion up to 6 units to meet higher load demands.

Battery Technology: M90 PRO (LiFePO4)

With more than 8000 cycles at 80% DOD, the M90 PRO battery is built for mission-critical environments. Designed with safety and intelligence in mind, it features:

• Voltage: 51.2V | Capacity: 320Ah (16.384kWh)
• Max Charge/Discharge: 200A
• Weight: 126.6 kg | Size: 990×505×200 mm
• Communication: RS232, RS485, CAN (compatible with most inverter BMS)
• Certifications: UL1973, IEC, UN38.3, CE, MSDS

Battery Advantages

• Top-tier LiFePO4 cells with UL certification
• High round-trip efficiency (>96%)
• Built-in BMS with temperature, overcharge, and short-circuit protection
• Lightweight and compact – 30% smaller than lead-acid systems
• Ideal for high-discharge industrial equipment

Real-World Applications

This system is tailor-made for both commercial and industrial scenarios:

• Manufacturing Plants and Warehouses: Manage peak loads and reduce utility costs
• Office Complexes and Retail Centers: Backup during grid outages and optimize solar usage
• Telecom and Data Centers: High-discharge, low-maintenance backup power
• Residential Mini-Grids: Remote and off-grid community energy solutions
• Security and Surveillance Systems: Uninterrupted power for critical infrastructure

Key Considerations for Industrial Three-Phase Solar Systems

When designing and installing a solar-plus-storage system for industrial use, especially involving three-phase power loads, there are several critical factors to ensure optimal performance and safety:

• Load Balancing: Proper phase balancing is essential to avoid uneven current distribution, which can cause overheating or inverter protection trips.
• Correct Sizing: Both inverters and battery banks must be accurately sized based on peak demand, surge loads, and backup duration requirements.
• PV Array Design: Ensure PV strings are configured within the inverter‘s MPPT voltage range. Consider panel orientation and local irradiance levels.
• Earthing and Protection: Use industrial-grade surge protectors, isolators, and proper grounding to comply with safety standards and reduce fire or electrical risk.
• Smart Monitoring: Industrial systems must support real-time performance tracking via SCADA or cloud platforms, especially in large-scale applications.
• Grid Compliance: In countries like the UAE and Saudi Arabia, systems must follow utility interconnection rules, including voltage limits and export controls.

Careful integration of the inverter, battery, and load circuits by licensed professionals ensures that the system not only functions efficiently but also adheres to local grid codes and safety laws.

Expanding Across the Middle East

The Middle East, with its high solar irradiance and growing industrial infrastructure, is rapidly becoming a hub for renewable energy deployment. Countries such as Saudi Arabia, the United Arab Emirates (UAE), and Oman are actively investing in solar and battery storage to diversify their energy mix and support Vision 2030 goals.

This project configuration — scalable, intelligent, and rugged — is perfectly suited to the region’s commercial and industrial environments. Whether it‘s a logistics center in Dammam, a remote telecom station in the Rub‘ al Khali, or an eco-resort in Muscat, this system delivers dependable energy performance across a range of scenarios.

For businesses seeking energy resilience, cost control, and a lower carbon footprint, solar plus storage solutions are not just the future — they are the present. With proven technology, robust components, and a scalable architecture, this installation demonstrates what clean energy can achieve in commercial and industrial sectors across the Middle East and beyond.
